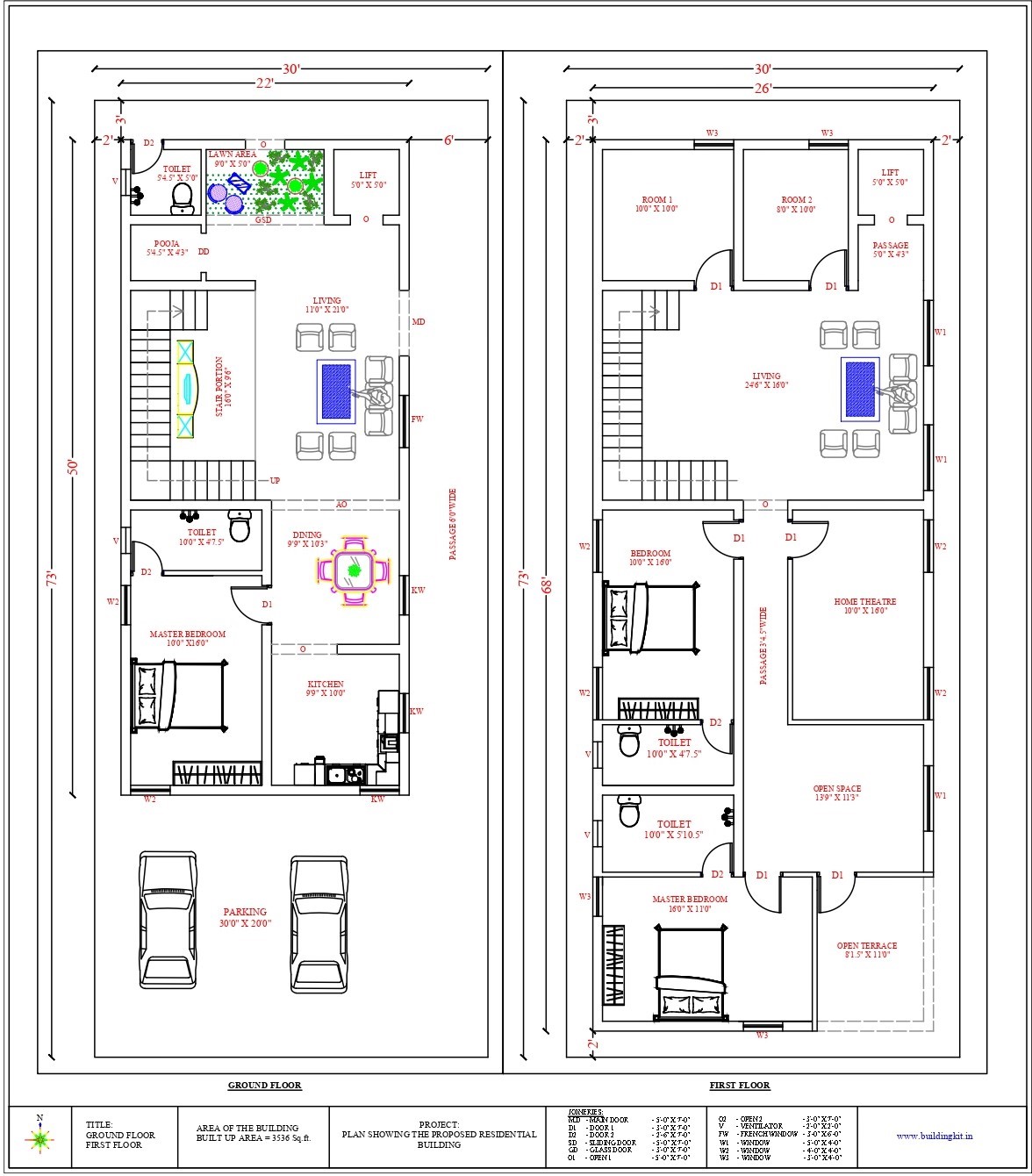

30’0″ x 73’0″ 3BHK

Description

3536 sq ft – 3BHK

Ground floor:

Hall – 11’0″ x 21’0″

Stair portion inside the living – 16’0″ x 9’6″

Kitchen – 9’9″ x 10’0″

Dining – 9’9″ x 10’3″

Pooja – 5’4.5″ x 5’0″

Master bedroom – 10’0″ x 16’0″

Attached toilet in Master bedroom – 10’0″ x 4’7.5″

Common toilet – 5’4.5″ x 5’0″

Lawn area – 9’0″ x 5’0″

Lift – 5’0″ x 5’0″

Parking – 30’0″ x 20’0″

Passage – 6’0″ wide

Good ventilation is provided throughout the house.

Kitchen with dining area is designed for comfortable family use.

A lawn area is designed inside the living area.

The duplex house method is planned with a apacious living area and lift provision is available.

Car parking and clear passage space are provided for easy access.

First floor:

Living – 24’6″ 16’0″

Master bedroom – 16’0″ x 11’0″

Attached toilet in master bedroom – 10’0″ x 5’10.5″

Bedroom – 10’0″ x 16’0″

Attached toilet in bedroom – 10’0″ x 4’7.5″

Room 1 – 10’0″ x 10’0″

Room 2 – 10’0″ x 10’0″

Home theatre – 10’0″ x 16’0″

Open terrace – 13’9″ x 11’3″/ 8’1.5″ x 11’0″

Lift – 5’0″ x 5’0″

Passage – 5’0″ x 4’3″

2 Master bedroom with an attached toilet.

A spacious living area, multiple rooms are provided with attached/common toilets.

A seperate home theatre room is planned for enterainment purpose.
