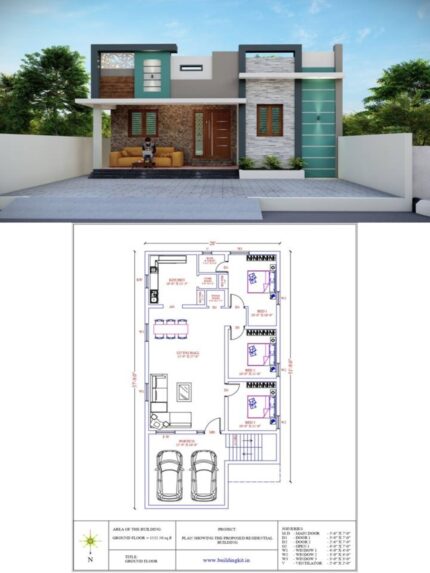

28’0″ x 57’9″ Sqft (2D+3D)

Description

1628 sq ft – 3BHK

GROUND FLOOR – DETAILED PLAN DESCRIPTION

 Portico – 15’9″ × 16’0″

• Located at the front of the building
• Spacious enough for:
  • 1 car + 2 two-wheelers
• Acts as:
  • Visual focal point of the elevation
  • Weather-protected entry
• Recommended finishes:
  • Anti-skid outdoor tiles
  • False ceiling with recessed lights

 Hall / Dining – 15’9″ × 27’6″

• Large combined living and dining space
• Easily divisible into:
  • Front living area (sofa + TV)
  • Rear dining area (6–8 seater table)
• Long dimension improves:
  • Cross ventilation
  • Natural light penetration
• Ideal for:
  • Family gatherings
  • Functions and daily use
• Provides direct access to:
  • Kitchen
  • Pooja room
  • Bedrooms

 Kitchen – 10’0″ × 11’3″

• Comfortable rectangular kitchen
• Suitable for:
  • L-shaped or U-shaped counter
• Shelf (1’7.5″ wide):
  • Dedicated for additional storage
  • Can be used as pantry or tall cabinet
• Adequate space for:
  • Refrigerator
  • Hob
  • Chimney
• Proper window placement ensures:
  • Heat and smoke ventilation

 Pooja Room – 3’9″ × 3’4.5″

• Compact and well-positioned near dining area
• Ideal for:
  • Wall-mounted or recessed pooja unit
• Can be finished with:
  • Wooden doors
  • Decorative lighting
• Maintains spiritual separation from living areas

Store Room – 3’9″ × 3’3″

• Located close to kitchen
• Used for:
  • Grocery storage
  • Kitchen accessories
• Reduces clutter in kitchen cabinets

 Bedroom 1 (Master Bedroom) – 10’0″ × 16’0″

• Spacious master bedroom
• Accommodates:
  • King-size bed
  • Wardrobe
  • Dressing unit
• Shelf (2’0″ wide):
  • Can be used as wardrobe niche or study shelf
• Suitable for parents or owner bedroom

 Attached Toilet (Bedroom 1) – 5’4.5″ × 4’0″

• Compact attached toilet
• Suitable for:
  • WC
  • Shower
  • Small wash basin
• Efficient plumbing layout reduces construction cost

 Bedroom 2 – 10’0″ × 11’0″

• Standard bedroom size
• Ideal for:
  • Children
  • Guest use
• Supports:
  • Queen-size bed
  • Wardrobe

 Bedroom 3 – 10’0″ × 11’0″

• Similar in size to Bedroom 2
• Can be used as:
  • Additional family bedroom
  • Study / work-from-home room

 Outside Stair Area – 10’9″ × 6’0″

• Independent staircase access to first floor
• Major advantage:
  • Upper floor can function separately
  • Future rental or independent use possible
• Stair width is comfortable and code-friendly

FIRST FLOOR – HEAD ROOM (STAIRCASE HEAD ROOM)

 Head Room – 12’7.5” × 6’0”

• Located at the termination of the outside staircase at first-floor level, providing controlled access to:
  • Open terrace
• Acts as a transition space between the staircase and terrace.

 OPEN TERRACE

 Open Terrace – 26’6″ × 27’9″

• Large multifunctional open space
• Can be used for:
  • Family gatherings
  • Terrace garden
  • Sit-out with pergola
  • Solar panels
  • Future room construction
• Proper slope provided for rainwater drainage
