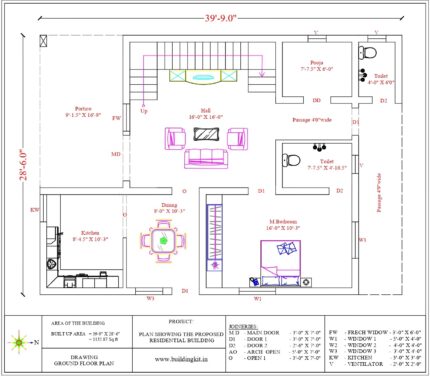

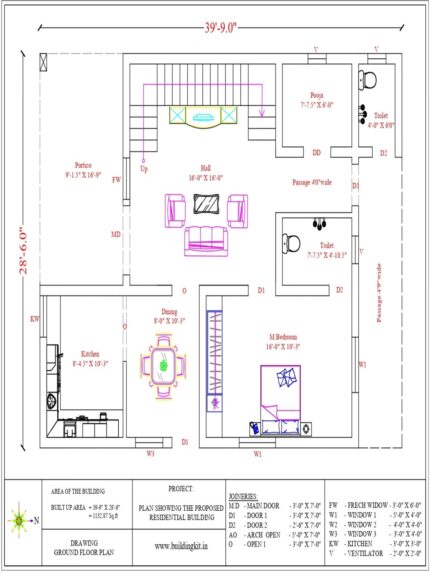

39’9″ x 28’6″ – 3BHK

Description

2265  sqft  – 3BHK

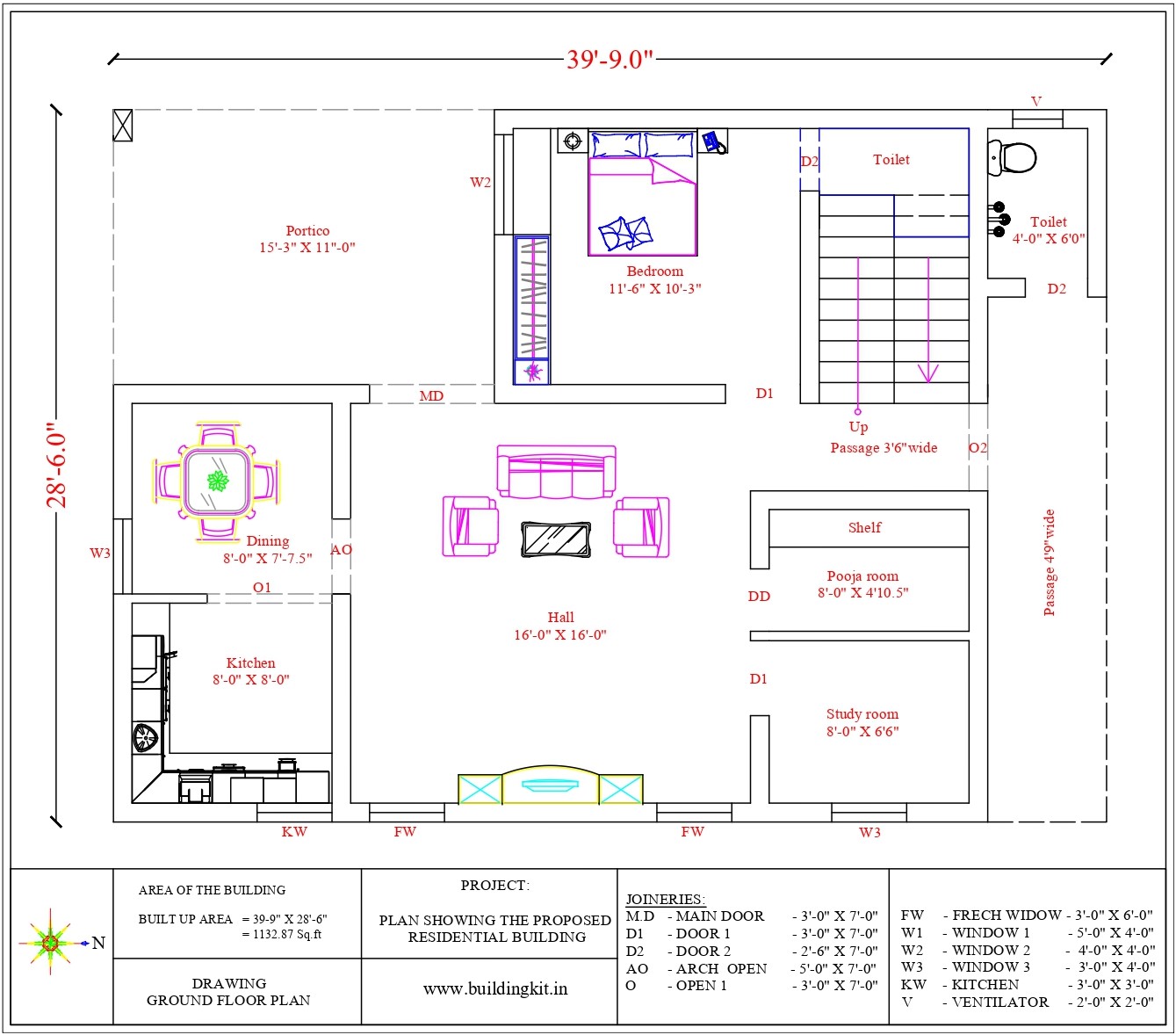

Ground floor :

Hall – 16’0″ x 16’0″

Kitchen – 8’0″ x 8’0″

Dining – 8’0″ x 7’7.5″

Bedroom – 11’6″ x 10’3″

Attached toilet in Master Bedroom – 3’0″ x 6’0″

Pooja – 8’0″ x 4’10.5″

Study room – 8’0″ x 6’6″

inside Passage – 3’6″ wide

Outside passage – 4’9″ wide

Study room – 8’0″ x 6’6″

Portico – 15’3″ x 11’0″

Common toilet – 4’0″ x 6’0″

Staircase – 6’0″ x 11’0″

One Bedroom with an attached toilet.

A Kitchen/ dining area and spacious portico.

First floor :

Hall – 11’0″ x 16’0″

Bedroom 1 – 11’6″ x 10’3″

Attached toilet in bedroom 1 – 4’0″ x 6’0″

Bedroom 2 – 11’0″ x 11’9″

Bedroom 3  – 8’0″ x 11’0″

Attached toilet in Bedroom 3 – 8’0″ x 4’7.5″

Balcony – 4’0″wide

Foyer – 5’9″ 4’6″

Open terrace – 9’6″ x 11’0″

Staircase – 6’0″ x 11’0″

This is a first floor residential plan with a spacious living hall.

Three bedrooms are provided with proper ventilation.

An Open terrace is provided for outdoor use.
